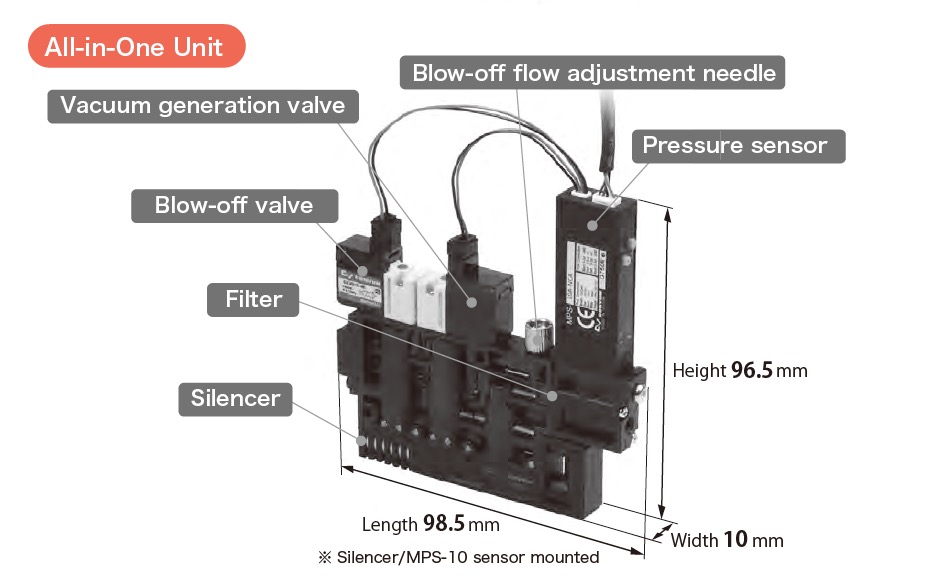

All-in-One Unit
Compact/Light weight
●Weight 87g (Single unit, without sensor) ● 10mm width body ● Resin body
※ The photograph is with MPS-10

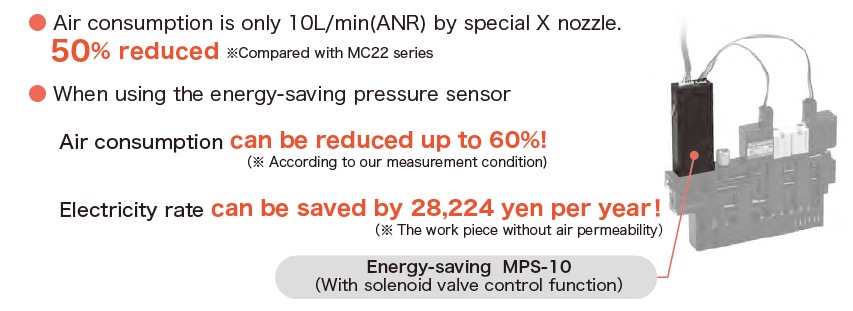

Air consumption reduced
●Air consumption is only 10L/min(ANR) by special X nozzle.
50% reduced ※Compared with MC22 series
●When using the energy-saving pressure sensor
Air consumption can be reduced up to 60%!
（※ According to our measurement condition)

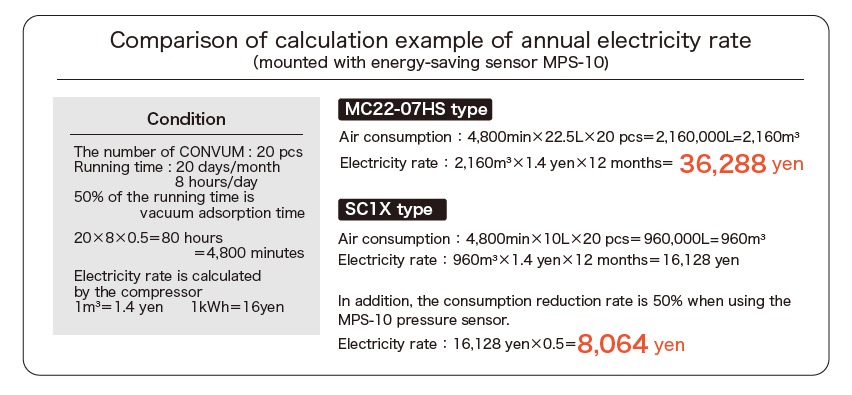

Electricity rate can be saved by 28,224 yen per year！
（※ The work piece without air permeability）
The number of CONVUM : 20 pcs
Running time : 20 days/month
8 hours/day
50% of the running time is
vacuum adsorption time
20×8×0.5＝80 hours
＝4,800 minutes
Electricity rate is calculated
by the compressor
1m3＝1.4 yen 1kWh＝16yen
MC22-07HS type
Air consumption ： 4,800min×22.5L×20 pcs＝2,160,000L=2,160m3
Electricity rate ： 2,160m3×1.4 yen×12 months＝ 36,288 yen
SC1X type
Air consumption ： 4,800min×10L×20 pcs＝960,000L=960m3
Electricity rate ： 960m3×1.4 yen×12 months＝16,128 yen
In addition, the consumption reduction rate is 50% when using the
MPS-10 pressure sensor.
Electricity rate ： 16,128 yen×0.5＝8,064 yen

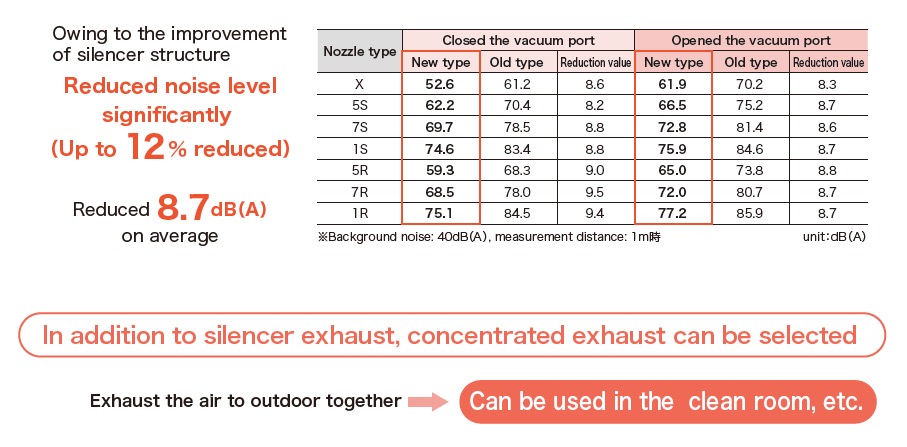

Low noise
Owing to the improvement
of silencer structure
（Up to 12％ reduced）
Reduced noise level
significantly
Reduced 8.7 dB（A）
on average
In addition to silencer exhaust, concentrated exhaust can be selected
Exhaust the air to outdoor together →
